How-To Install Brine Maker (EasyBuilder Pro)

Download to Latest Version: https://www.weintek.com/globalw/Download/Download.aspx

Version: 6.01.01.213

1. Go to "\\COEDS\Apps\EasyBuilder Pro (Brine Maker)"
2. Run "EBpro_Setup" or similar name to start the install process.
3. Follow the prompts and install.
   1. Default prompts.
   2. Install any drivers.
   3. Allow Firewall
4. Start "Utility Manager" Shortcut on desktop
   1. OR "Start" Menu > "All Programs" > "EasyBuilder Pro" > "Utility Manager".

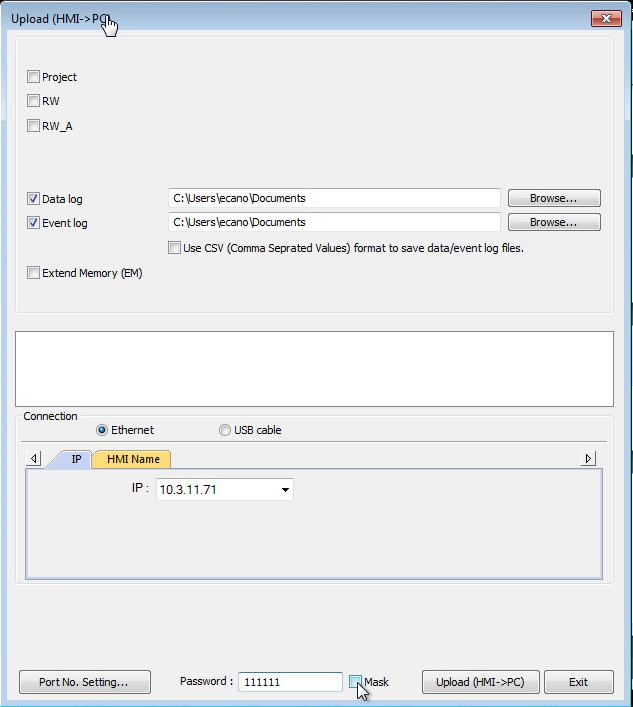

5. Click on Vertical "Publish" Tab
6. Click on "Upload" Large Button
7. "Data log" and "Event log" check-mark.

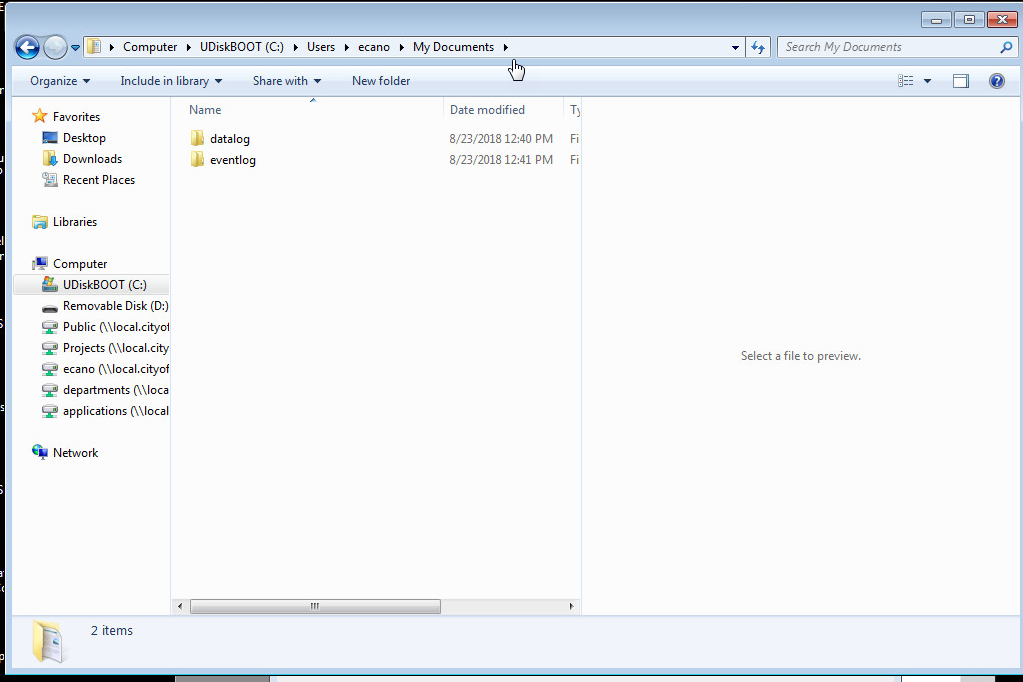

8. "Browse" button to local like My Documents for both Data log and Event log.
   1. Example location. The location does not matter, but should be a semi-permanent location on the computer.
      1.
9. Go to "IP" tab and enter "10.3.11.71"
   1. Password: "111111" is set as default and can be un-masked.

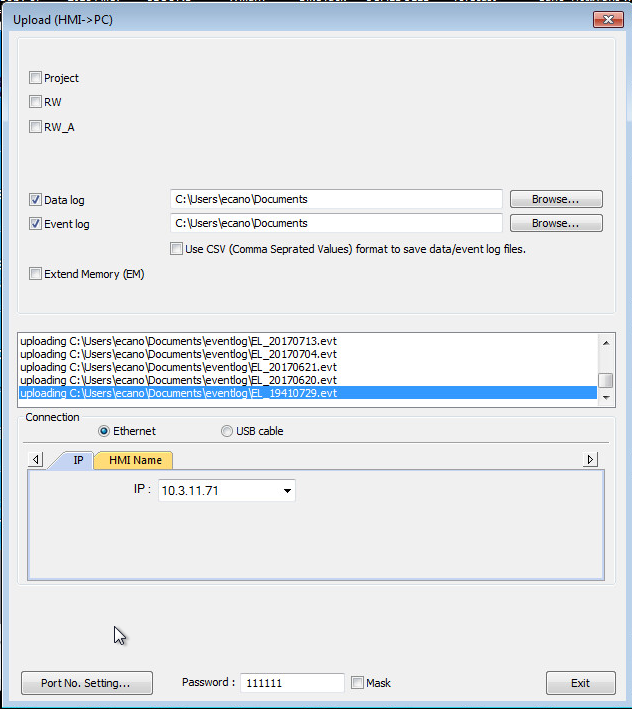

10. Click on "Upload (HMI->PC)" Button
    1. Connecting HMI... note
    2. These are the setting once you are done.
       1.
       2.
11. "Exit" Button
12. "X" or Close on iP Series Application.

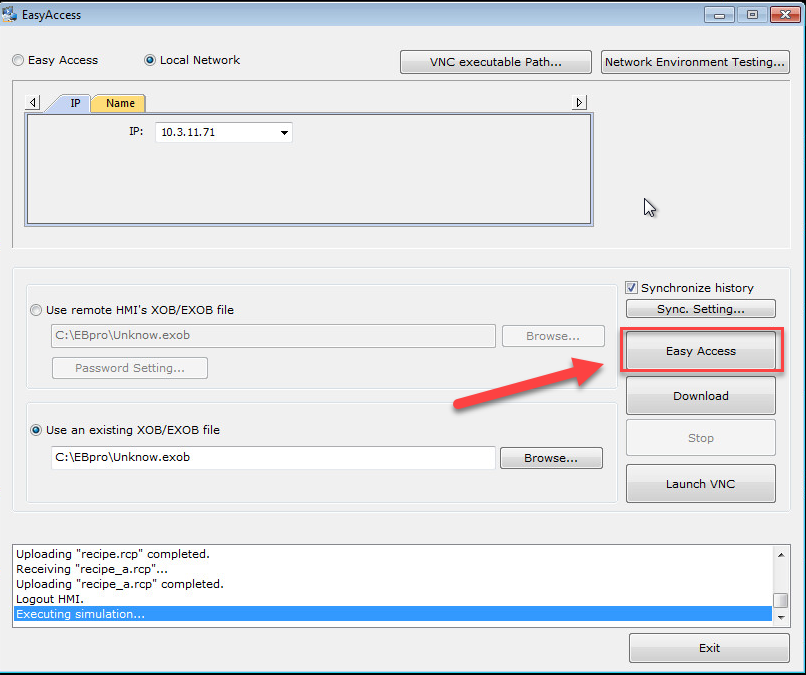

13. "Start" Menu > "All Programs" > "EasyBuilder Pro" > "EasyAccess"
14. "Allow access" Button for Windows Security Alert
15. Click the "Local Network" Bubble
16. Under "IP" Tab enter the following information.
    1. IP: "10.3.11.71"
    2. Click on "Easy Access" button
       1.
17. "Allow access" Button for Windows Security Alert

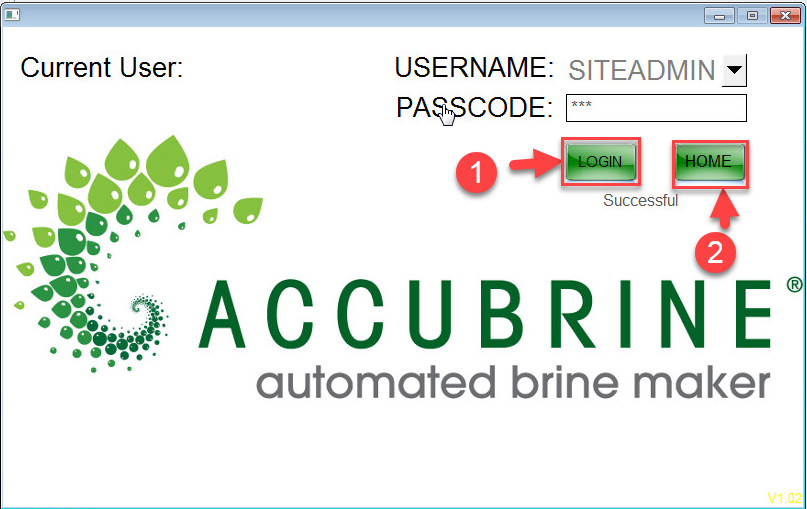

18. A "Accubrine" login screen will appear. Enter the following.
    1. Username: "SITEADMIN"
    2. Password: "111"
19. "LOGIN" Button
20. Then "HOME" Button
    1.
21. "MAKE BRINE" Button.

The application has been configured, and logged in.
